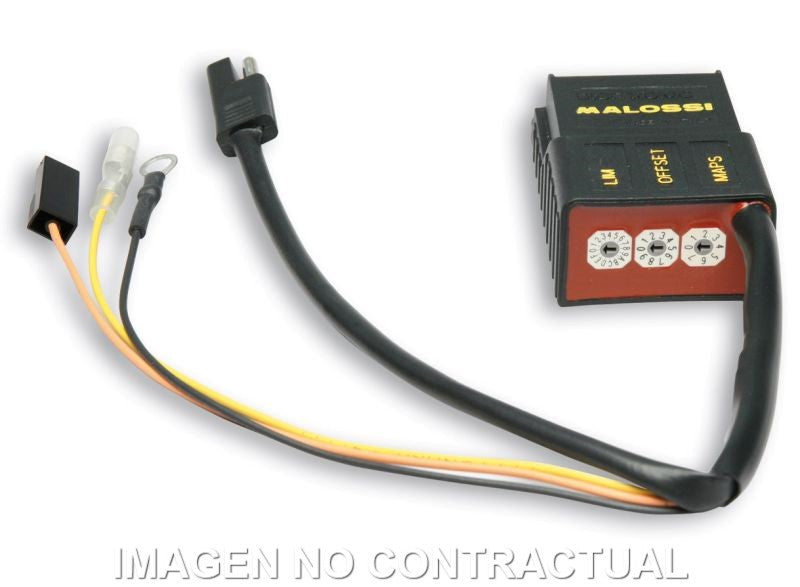

CDI Digitronic Trimmer MHR Team (5514398)

Para encendido: 55115001/5515002/5515003

Los encendidos por medio de rotor interno nacen de la exigencia de superar las limitaciones técnicas de los grupos volante-encendido de origen, los cuales, más allá de los 10.000 revoluciones/minuto, no garantizan una constancia de prestación provocando notables y a veces insuperables problemas de puesta a punto de los medios de competición

Estas centralitas son más resistentes a las interferencias mediante el desarrollo de un microprocesador uP STM8 ? 8 bit con capacidad de procesamiento superior @ 20 MIPS: garantizando una eficacia de chispa mayor que en la versión anterior

La gama MHR esta dotada de centralita de avance variable no reasignable.

Características técnicas

Centralita

• Anticipación variable.
• Sistema basado en uP SYM8 -8 bit con capacidad de procesamiento superior a @ 20 MIPS ( millón de instrucciones por segundo).
• Reducción del tiempo de procesamiento, mejorando la precisión y estabilidad de la actuación del avance.
• Arquitectura de Hardware con mejora del blindaje antiparasitario.
• Cableado con clase de temperatura 105° C.
• Tabla de avance vectorial compuesta de 24 breakpoints e interpolación lineal.

Bobina de alta tensión

• Descarga capacitiva.
• Altísimo rendimiento.
• Tensión de descarga constante de 30.000 voltios hasta 20.000 revoluciones/minuto.

Grupo rotor-estator

• Rotor interno con mínimas dimensiones (Ø 58 mm) y peso.
• Rotor con imanes permanentes para elevadas prestaciones.
• Máximo rendimiento.

ATENCION : con este tipo de encendido la instalación elèctrica del vehículo será desconectada

• Marca: Malossi
• Familia: Parte Eléctrica Malossi
• Unidades por caja: 1
• Código de barras: 5514398

Aplicaciones: AEON COBRA 50 (2007 - 2013) / --- APRILIA AREA 51 2T AC CARB (1998 - 2000) / --- APRILIA AMICO 50 2T DT AC CARB (1992 - 1998) / --- APRILIA GULLIVER 50 2T AC CARB (1995 - 2000) / --- APRILIA GULLIVER 50 2T LC CARB (1996 - 2000) / --- APRILIA RALLY 50 2T AC CARB (1995 - 2004) / --- APRILIA RALLY 50 2T DD LC CARB (1996 - 1999) / --- APRILIA RS 50 2T LC CARB (1993 - 1995) / --- APRILIA RS 50 2T LC CARB E3 (2006 - 2010) / --- APRILIA RS 50 2T 3M LC CARB (1993 - 1994) / --- APRILIA RS 50 2T 6M LC CARB (1995 - 1996) / --- APRILIA RS TUONO 50 2T LC CARB E2 (2003 - 2004) / --- APRILIA RS4 50 2T LC CARB E3 (2011 - 2013) / --- APRILIA RS4 50 2T LC CARB E4 (2018 - 2020) / --- APRILIA RX 50 2T FACTORY LC CARB E4 (2018 - 2020) / --- APRILIA SONIC 50 2T AC CARB E1 (1998 - 2002) / --- APRILIA SONIC 50 2T LC CARB E1 (1998 - 2002) / --- APRILIA SONIC 50 2T LC CARB E2 (2003 - 2009) / --- APRILIA SPORT CITY ONE 50 2T AC CARB E3 (2008 - 2010) / --- APRILIA SR 50 2T AC CARB (1997 - 1998) / --- APRILIA SR 50 2T LC CARB DISC BRAKE (1997 - 1998) / --- APRILIA SX 50 2T LC CARB E3 (2006 - 2010) / --- APRILIA SX 50 2T LC CARB E3 (2011 - 2013) / --- APRILIA SX 50 2T LC CARB E3 (2014 - 2017) / --- BENELLI 491 2T RR AC CARB (ENG. MINARELLI) E1 (1999 - 2003) / --- BENELLI 491 2T SPORT AC CARB (1997 - 1999) / --- BENELLI K2 50 2T AC CARB E1 (1998 - 2002) / --- BENELLI K2 50 2T LC CARB E1 (1998 - 2002) / --- BENELLI NAKED 50 2T AC CARB (ENG. MINARELLI) E1 (1999 - 2003) / --- BETA ENDURO RR 50 2T LC CARB E3 (2012 - 2017) / --- BETA ENDURO RR 50 2T LC CARB E4 (2018 - 2018) Recambio para encendido 5515003/ --- BETA ENDURO RR 50 2T LC CARB E4 (2019 - 2020) Recambio para encendido 5515003/ --- BETA ENDURO RR 50 2T RACING LC CARB E3 (2007 - 2010) / --- BETA ENDURO RR 50 2T RACING LC CARB E4 (2018 - 2018) Recambio para encendido 5515003/ --- BETA ENDURO RR 50 2T RACING LC CARB E4 (2019 - 2020) Recambio para encendido 5515003/ --- BETA ENDURO RR 50 2T SPORT LC CARB E3 (2012 - 2017) / --- BETA ENDURO RR 50 2T SPORT LC CARB E4 (2019 - 2020) Recambio para encendido 5515003/ --- BETA MOTARD RR 50 2T LC CARB E4 (2018 - 2018) / --- BETA MOTARD RR 50 2T LC CARB E4 (2019 - 2020) / --- BETA MOTARD RR 50 2T SPORT LC CARB E4 (2018 - 2018) / --- BETA MOTARD RR 50 2T SPORT LC CARB E4 (2019 - 2020) / --- BETA MOTARD RR 50 2T TRACK LC CARB E4 (2018 - 2018) / --- BETA MOTARD RR 50 2T TRACK LC CARB E4 (2019 - 2020) / --- BETA ARK 50 2T AC CARB E3 (2007 - 2014) Recambio para encendidos 5514690 y 5515002/ --- BETA ARK 50 2T LC CARB E3 (2007 - 2014) / --- BETA EIKON 50 2T LC CARB E1 (1999 - 2003) / --- BETA QUADRA 50 2T AC CARB (1996 - 1999) / --- BSV AX/GZ 50 (1993 - 1993) / --- CPI OLIVER 2T (50C) 50 (2001 - 2002) / --- DERBI GPR 50 2T RACING LC CARB E2 (2004 - 2006) / --- DERBI GPR 50 2T RACING LC CARB E3 (2006 - 2008) / --- DERBI GPR 50 2T RACING LC CARB E3 (2009 - 2009) / --- DERBI GPR 50 2T RACING LC CARB E3 (2012 - 2013) / --- DERBI GPR 50 2T NUDE LC CARB E2 (2004 - 2006) / --- DERBI GPR 50 2T NUDE LC CARB E3 (2006 - 2008) / --- DERBI SENDA 50 R 2T X-RACE LC CARB E3 (2006 - 2010) / --- DERBI SENDA 50 R 2T X-TREME LC CARB E3 (2006 - 2010) / --- DERBI SENDA 50 R 2T DRD RACING LC CARB E2 (2004 - 2006) / --- DERBI SENDA 50 R 2T DRD PRO LC CARB E3 (2005 - 2011) / --- DERBI SENDA 50 SM 2T X-RACE LC CARB E3 (2006 - 2010) / --- DERBI SENDA 50 SM 2T X-TREME LC CARB E3 (2006 - 2007) / --- DERBI SENDA 50 SM 2T DRD RACING LC CARB E3 (2005 - 2010) / --- DERBI SENDA 50 SM 2T DRD RACING LC CARB E3 (2010 - 2017) / --- DERBI SENDA 50 SM 2T DRD PRO LC CARB E3 (2005 - 2012) / --- GILERA DNA 50 2T LC CARB E1 (2000 - 2001) / --- GILERA DNA 50 2T LC CARB E2 (2002 - 2006) / --- GILERA EASY MOVING 50 2T AC CARB (1996 - 1996) / --- GILERA GSM 50 2T LC CARB (1999 - 2000) / --- GILERA GSM 50 2T LC CARB E1 (2001 - 2001) / --- GILERA H@K 50 2T LC CARB (1999 - 2000) / --- GILERA H@K 50 2T LC CARB E1 (2001 - 2001) / --- GILERA RCR 50 2T LC CARB E2 (2003 - 2010) / --- GILERA RCR 50 2T LC CARB E4 (2018 - 2020) / --- GILERA RUNNER 50 2T SP LC CARB E2 (2002 - 2017) / --- GILERA SMT 50 2T LC CARB E4 (2018 - 2020) / --- GILERA STALKER 50 2T DD AC CARB REAR DISC BRAKE E1 (1997 - 2005) / --- GILERA STALKER 50 2T DT AC CARB REAR DRUM BRAKE E1 (1997 - 2005) / --- GILERA STORM 50 2T AC CARB (1993 - 1997) / --- GILERA TYPHOON 50 2T AC CARB (1994 - 1997) / --- GILERA TYPHOON 50 2T X AC CARB (1998 - 1999) / --- HM DERAPAGE RR 11 50 (MINARELLI AM 6) (2007 - 2013) Motor Minarelli AM 6/ --- MALAGUTI F12 PHANTOM AIR DD 50 (1980 - 2024) / --- MALAGUTI F12 PHANTOM AIR DT 50 (1980 - 2024) / --- MALAGUTI F12 PHANTOM LC DD 50 (1980 - 2024) / --- MALAGUTI F12 PHANTOM LC DT 50 (1980 - 2024) / --- MALAGUTI YESTERDAY 50 (1980 - 2024) / --- MBK BOOSTER 50 2T SPIRIT 10'' AC CARB (1990 - 2016) / --- MBK BOOSTER 50 2T SPIRIT 12'' AC CARB (2001 - 2014) / --- MBK BOOSTER 50 2T NEXT GENERATION AC CARB (1995 - 2006) / --- MBK BOOSTER 50 2T POWER ROCKET AC CARB (1996 - 2006) / --- MBK BOOSTER 50 2T POWER ROCKET AC CARB (2008 - 2009) / --- MBK EVOLIS 50 2T AC CARB (1993 - 1995) / --- MBK FLIPPER 50 2T LIGHT AC CARB (2004 - 2004) / --- MBK FORTE 50 2T AC CARB (1994 - 1996) / --- MBK MACH G 50 2T AC CARB (2002 - 2012) / --- MBK MACH G 50 2T LC CARB (2002 - 2015) / --- MBK NITRO 50 2T LC CARB (1997 - 2000) / --- MBK NITRO 50 2T LC CARB E1 (2001 - 2003) / --- MBK NITRO 50 2T LC CARB E2 (2004 - 2012) / --- MBK NITRO 50 2T LC CARB E3 (2013 - 2016) / --- MBK NITRO 50 2T F1 LC CARB (1999 - 2000) / --- MBK NITRO 50 2T F1 LC CARB E1 (2001 - 2003) / --- MBK NITRO 50 2T F1 LC CARB E2 (2004 - 2004) / --- MBK NITRO 50 2T NAKED LC CARB E2 (2005 - 2012) / --- MBK NITRO 50 2T NAKED LC CARB E3 (2013 - 2016) / --- MBK OVETTO 50 2T AC CARB (1997 - 1998) / --- MBK OVETTO 50 2T AC CARB E1 (1999 - 2002) / --- MBK OVETTO 50 2T AC CARB E2 (2003 - 2007) / --- MBK OVETTO 50 2T AC CARB E3 (2008 - 2016) / --- MBK STUNT 50 2T AC CARB E1 (2000 - 2003) / --- MBK STUNT 50 2T AC CARB E2 (2004 - 2005) / --- MBK STUNT 50 2T NAKED AC CARB E1 (2003 - 2003) / --- MBK STUNT 50 2T NAKED AC CARB E2 (2004 - 2016) / --- MBK X-LIMIT 50 2T ENDURO LC CARB (1997 - 2001) / --- MBK X-LIMIT 50 2T ENDURO LC CARB E1 (2002 - 2003) / --- MBK X-LIMIT 50 2T ENDURO LC CARB E2 (2004 - 2006) / --- MBK X-LIMIT 50 2T ENDURO LC CARB E3 (2007 - 2011) / --- MBK X-POWER 50 2T LC CARB E1 (2000 - 2002) / --- MBK X-POWER 50 2T LC CARB E2 (2003 - 2006) / --- MBK X-POWER 50 2T LC CARB E3 (2007 - 2012) / --- PEUGEOT XPS 50 2T ENDURO LC CARB E2 (2004 - 2006) / --- PEUGEOT XR7 50 2T LC CARB E3 (2008 - 2014) / --- PIAGGIO DIESIS 50 2T AC CARB E2 (2004 - 2004) / --- PIAGGIO DIESIS 50 2T 25KM/H AC CARB E2 (2004 - 2004) / --- PIAGGIO LIBERTY 50 2T AC CARB E1 (1998 - 2003) / --- PIAGGIO LIBERTY 50 2T RST AC CARB E2 (2004 - 2005) / --- PIAGGIO LIBERTY 50 2T RST AC CARB E2 (2006 - 2006) / --- PIAGGIO LIBERTY 50 2T SPORT AC CARB E2 (2006 - 2006) / --- PIAGGIO LIBERTY 50 2T SPORT AC CARB E2 (2007 - 2008) / --- PIAGGIO LIBERTY 50 2T MOC AC CARB E2 (2009 - 2013) / --- PIAGGIO LIBERTY 50 2T PTT/DELIVERY AC CARB E1 (1999 - 2004) / --- PIAGGIO NRG 50 MC2 2T DD AC CARB (1997 - 1997) / --- PIAGGIO NRG 50 MC2 2T EXTREME DD LC CARB E1 (1999 - 1999) / --- YAMAHA AEROX 50 2T LC CARB E1 (2001 - 2002) / --- YAMAHA AEROX 50 2T L LC CARB E1 (2001 - 2003) / --- YAMAHA BREEZE 50 2T AC CARB (1995 - 1996) / --- YAMAHA CR 50 Z 2T AC CARB (1991 - 1995) / --- YAMAHA DT 50 2T R ENDURO LC CARB (1997 - 2001) / --- YAMAHA JOG 50 2T R AC CARB (2002 - 2015) / --- YAMAHA JOG 50 2T RR AC CARB (2002 - 2015) / --- YAMAHA NEO'S 50 2T AC CARB (1997 - 2001) / --- YAMAHA NEO'S 50 2T AC CARB E1 (2002 - 2003) / --- YAMAHA NEO'S 50 2T AC CARB E2 (2004 - 2007) / --- YAMAHA NEO'S 50 2T AC CARB E3 (2008 - 2016) / --- YAMAHA NEO'S 50 2T MOFA AC CARB E1 (2001 - 2003) / --- YAMAHA NEO'S 50 2T MOFA AC CARB E2 (2004 - 2005) / --- YAMAHA NEO'S 50 2T MOFA AC CARB E3 (2006 - 2012) / --- YAMAHA SLIDER 50 2T AC CARB E1 (2000 - 2004) / --- YAMAHA TZR 50 2T LC CARB (1990 - 2012) / --- YAMAHA VINO 50 2T CLASSIC AC CARB (1997 - 2002) / --- YAMAHA WHY 50 2T AC CARB E1 (1998 - 2003) / --- YAMAHA ZEST 50 2T AC CARB (1992 - 1995) /

Disponible en 48 a 72 horas
