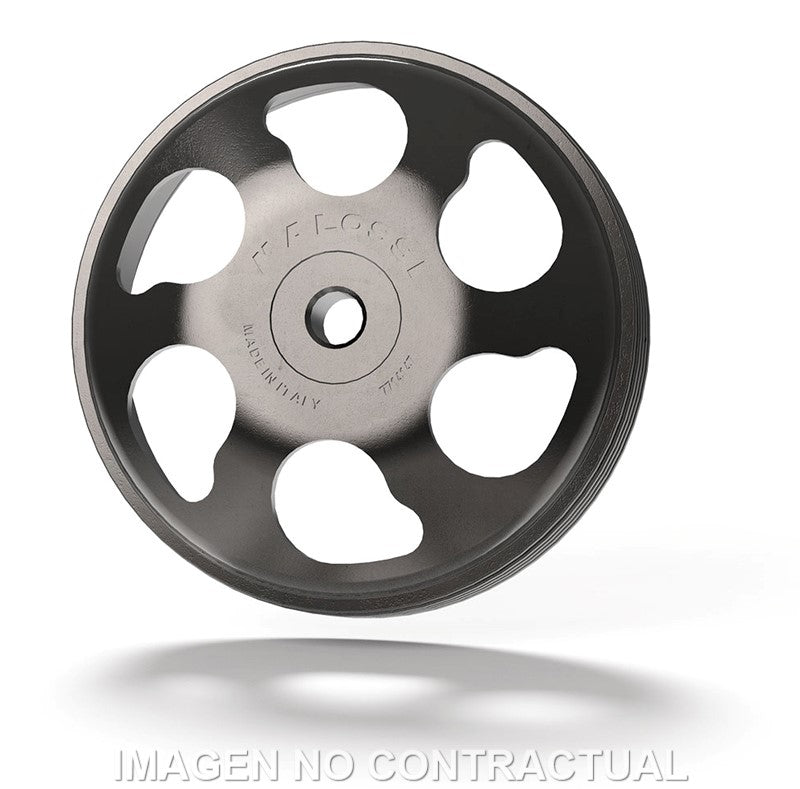

Campana Embrague Wing Clutch Derbi GP1 50 LC (7714147)

Campana embrague refrigerada Wing Clutch Bell MHR Ø interno 107 mm y peso 539 gr para motores Piaggio

Mecanizada desde una pieza forjada de aleación de acero, todas las superficies han sido tratadas y templadas sin soldaduras

Especificaciones técnicas

• Campana de embrague forjada, sin soldaduras, fabricada en Acero 39NiCrMo5, templada con nitrógeno y con un tratamiento antioxidante.
• Mecanizada reforzando la corona mejorando la disipación calórica y protegiendo la superficie de fricción del embrague. Probado a más de 20.000 RPM.
• Agujeros radiales añadidos a la superficie de contacto dimensionados y posicionados para mantener limpia continuamente la superficie de fricción del embrague.
• Concepto Original con aperturas diseñadas para crear ventilación dinámica y ofrecimiento la posibilidad de regular los ajustes de embrague internos.
• Alto Nivel de terminaciones y tolerancias extremas mantenidas.

Tolerancias de Trabajo Superficiales

Terminación superficies: Ra 0.5 µm

Acabado Circular: 0.05 mm

Circularidad: 0.08 mm

• Balanceo: 0.5 g

• Marca: Malossi
• Familia: Embragues y Campanas
• Unidades por caja: 1
• Código de barras: 7714147

Aplicaciones: APRILIA MOJITO/HABANA 50 2T CUSTOM (ENG. APRILIA) AC CARB E1 (1999 - 2002) / --- APRILIA MOJITO/HABANA 50 2T CUSTOM (ENG. APRILIA) AC CARB E2 (2003 - 2003) / --- APRILIA SCARABEO 50 2T CLASSIC AC CARB E4 (2018 - 2020) Para 5214738/ --- APRILIA SCARABEO 50 2T STREET AC CARB E4 (2018 - 2020) Para 5214738/ --- APRILIA SCARABEO 50 4T 2V AC CARB E2 (2002 - 2006) / --- APRILIA SCARABEO 50 4T 2V AC CARB E3 (2006 - 2009) / --- APRILIA SCARABEO 50 4T 4V AC CARB E3 (2009 - 2017) / --- APRILIA SPORT CITY ONE 50 2T AC CARB E3 (2008 - 2010) Para 5214738/ --- APRILIA SPORT CITY ONE 50 4T AC CARB E3 (2008 - 2010) / --- APRILIA SR 50 2T R LC R CARB E4 (2018 - 2020) / --- APRILIA SXR 50 4T AC IGET E5 (2021 - 2025) / --- BAOTIAN TANCO 9/12 4T 50 (2007 - 2012) / --- BAOTIAN ROCKY 4T 50 (2007 - 2012) / --- BAOTIAN REBEL 4T 50 (2007 - 2012) / --- BAOTIAN BT50QT-9 ECO BIKE 50 (2006 - 2008) / --- CAGIVA CITY 50 (1991 - 1994) / --- DERBI GP1 50 2T LC CARB E1 (2001 - 2004) / --- DERBI GP1 50 2T LC CARB E2 (2003 - 2004) / --- DERBI GP1 50 2T RACE LC CARB E2 (2005 - 2007) / --- DERBI GP1 50 2T OPEN LC CARB E3 (2006 - 2010) / --- DERBI VARIANT 50 2T SPORT AC CARB E3 (2012 - 2017) / --- GILERA DNA 50 2T LC CARB E1 (2000 - 2001) / --- GILERA DNA 50 2T LC CARB E2 (2002 - 2006) / --- GILERA ICE 50 2T AC CARB E2 (2002 - 2005) / --- GILERA EASY MOVING 50 2T AC CARB (1996 - 1996) / --- GILERA RUNNER 50 2T DD LC CARB REAR DISC BRAKE E1 (1997 - 2001) / --- GILERA RUNNER 50 2T SP LC CARB E2 (2002 - 2017) / --- GILERA STALKER 50 2T DD AC CARB REAR DISC BRAKE E1 (1997 - 2005) / --- GILERA STALKER 50 2T DT AC CARB REAR DRUM BRAKE E1 (1997 - 2005) / --- GILERA TYPHOON 50 2T X AC CARB (1998 - 1999) / --- KYMCO AGILITY 50 2T 16 PLUS AC CARB E3 (2014 - 2017) / --- KYMCO AGILITY 50 4T 10 AC CARB E2 (2005 - 2012) / --- KYMCO AGILITY 50 4T 12 AC CARB E2 (2005 - 2017) / --- KYMCO AGILITY 50 4T RS 12 AC CARB E2 (2009 - 2013) / --- KYMCO AGILITY 50 4T 12 AC CARB E4 (2019 - 2020) Para 5214738/ --- KYMCO AGILITY 50 4T CITY 16 AC CARB E2 (2008 - 2013) / --- KYMCO COBRA/TOP BOY 50 2T AC CARB (1997 - 1999) / --- KYMCO COBRA/TOP BOY 50 2T EXCLUSIVE AC CARB (1997 - 1999) / --- KYMCO DINK 50 2T AC CARB E1 (1998 - 2003) / --- KYMCO DINK 50 2T AC CARB E2 (2003 - 2006) / --- KYMCO DINK 50 4T AC CARB E2 (2007 - 2013) / --- KYMCO DINK 50 4T LC CARB E1 (1998 - 2002) / --- KYMCO LIKE 50 4T AC CARB E2 (2009 - 2017) / --- KYMCO PEOPLE 50 2T AC CARB E1 (1999 - 2004) / --- KYMCO PEOPLE 50 2T AC CARB E2 (2003 - 2007) / --- KYMCO PEOPLE 50 2T AC CARB E3 (2007 - 2014) / --- KYMCO PEOPLE 50 2T S AC CARB E2 (2005 - 2017) / --- KYMCO PEOPLE 50 4T S AC CARB E2 (2006 - 2017) Euro 2/ --- KYMCO PEOPLE 50 4T S AC IE E4 (2018 - 2020) / --- KYMCO COBRA/TOP BOY 100 2T AC CARB E1 (1999 - 2003) / --- MALAGUTI CENTRO 4T 50 (1980 - 2022) Euro 2/ --- MALAGUTI CIAK MASTER 4T 50 (1980 - 2022) Euro 2/ --- PEUGEOT BUXY 50 2T AC CARB (1993 - 2002) / --- PEUGEOT ELYSEO 50 2T AC CARB E1 (1998 - 2001) / --- PEUGEOT ELYSEO 50 2T AC CARB E1 (2002 - 2003) / --- PEUGEOT JET FORCE 50 2T C-TECH LC CARB E2 (2005 - 2007) / --- PEUGEOT LOOXOR 50 2T AC CARB E1 (2001 - 2004) / --- PEUGEOT LOOXOR 50 2T CARGO AC CARB E1 (2001 - 2004) / --- PEUGEOT LOOXOR 50 2T AC TDSI E1 (2002 - 2004) / --- PEUGEOT LOOXOR 50 2T AC TDSI E2 (2005 - 2006) / --- PEUGEOT SQUAB 50 2T AC CARB (1995 - 1999) / --- PEUGEOT SPEEDAKE 50 2T AC CARB (1993 - 2002) / --- PEUGEOT SPEEDFIGHT 1 50 2T AC CARB (1997 - 1999) / --- PEUGEOT SPEEDFIGHT 1 50 2T LC CARB (1997 - 1999) / --- PEUGEOT SPEEDFIGHT 2 50 2T LC CARB E2 (2005 - 2008) / --- PEUGEOT SPEEDFIGHT 3 50 2T AC CARB E3 (2009 - 2015) / --- PEUGEOT SPEEDFIGHT 3 50 2T LC CARB E3 (2009 - 2014) / --- PEUGEOT ST RAPIDO 50 2T AC CARB (1985 - 1993) / --- PEUGEOT TREKKER 50 2T AC CARB (1997 - 1999) / --- PEUGEOT V-CLIC 50 4T AC CARB E3 (2007 - 2014) / --- PEUGEOT VIVACITY 3 50 2T AC CARB E3 (2008 - 2018) / --- PEUGEOT ZENITH 50 2T AC CARB (1993 - 2002) / --- PIAGGIO VELOFAX 50 2T AC CARB (1996 - 1999) / --- PIAGGIO DIESIS 50 2T AC CARB E2 (2004 - 2004) / --- PIAGGIO DIESIS 50 2T 25KM/H AC CARB E2 (2004 - 2004) / --- PIAGGIO FLY 50 2T AC CARB E2 (2004 - 2005) Para 5214738/ --- PIAGGIO FLY 50 2T AC CARB E2 (2006 - 2009) Para 5214738/ --- PIAGGIO FLY 50 2T AC CARB E2 (2010 - 2011) Para 5214738/ --- PIAGGIO FLY 50 4T 2V AC CARB E2 (2006 - 2007) / --- PIAGGIO FLY 50 4T 2V AC CARB E2 (2008 - 2011) / --- PIAGGIO FLY 50 4T 2V AC CARB E2 (2013 - 2015) Para 5214738/ --- PIAGGIO LIBERTY 50 2T AC CARB E1 (1998 - 2003) / --- PIAGGIO LIBERTY 50 2T RST AC CARB E2 (2004 - 2005) / --- PIAGGIO LIBERTY 50 2T RST AC CARB E2 (2006 - 2006) / --- PIAGGIO LIBERTY 50 2T SPORT AC CARB E2 (2006 - 2006) / --- PIAGGIO LIBERTY 50 2T SPORT AC CARB E2 (2007 - 2008) / --- PIAGGIO LIBERTY 50 2T MOC AC CARB E2 (2009 - 2013) / --- PIAGGIO LIBERTY 50 2T PTT/DELIVERY AC CARB E1 (1999 - 2004) / --- PIAGGIO LIBERTY 50 4T RST AC CARB E2 (2004 - 2005) / --- PIAGGIO LIBERTY 50 4T MOC AC CARB E2 (2009 - 2016) / --- PIAGGIO LIBERTY 50 4T 25KM/H AC IGET E3 (2016 - 2017) / --- PIAGGIO LIBERTY 50 4T AC IGET E4 (2018 - 2020) / --- PIAGGIO LIBERTY 50 4T 25KM/H AC IGET E4 (2018 - 2020) / --- PIAGGIO LIBERTY 50 4T AC IGET E5 (2020 - 2024) / --- PIAGGIO LIBERTY 50 4T AC IGET E5+ (2025 - 2025) / --- PIAGGIO LIBERTY 50 4T SPORT AC IGET E5+ (2025 - 2025) / --- PIAGGIO NRG 50 MC2 2T DD AC CARB (1997 - 1997) Para 5214738/ --- PIAGGIO NRG 50 MC2 2T EXTREME DD LC CARB E1 (1999 - 1999) Para 5214738/ --- PIAGGIO NRG 50 POWER 2T DT AC CARB E2 (2005 - 2006) / --- PIAGGIO NRG 50 POWER 2T DT AC CARB E3 (2007 - 2015) / --- PIAGGIO ZIP 50 2T SP2 LC CARB E1 (2001 - 2001) / --- PIAGGIO ZIP 50 2T SP2 LC CARB E1 (2001 - 2005) / --- PIAGGIO ZIP 50 2T SP2 LC CARB E2 (2006 - 2013) / --- PIAGGIO ZIP 50 2T AC CARB E2 (2009 - 2014) / --- PIAGGIO ZIP 50 4T SPORT AC IGET E5 (2021 - 2024) / --- SYM JET 50 2T SPORT X R AC CARB E2 (2006 - 2011) / --- SYM SYMPLY 50 4T AC CARB E2 (2007 - 2017) / --- VESPA ET4 50 4T AC CARB E1 (2000 - 2003) / --- VESPA ET4 50 4T AC CARB E2 (2003 - 2004) / --- VESPA LX 50 4T 4V AC CARB E2 (2009 - 2013) / --- VESPA PRIMAVERA 50 4T 3V 25KM/H AC IE E4 (2017 - 2020) / --- VESPA PRIMAVERA 50 4T 3V AC IE ABS E5 (2020 - 2021) Para 5214738/ --- VESPA SPRINT 50 4T 3V 25KM/H AC IGET E4 (2018 - 2020) / --- VESPA SPRINT 50 4T 3V AC IGET E4 (2018 - 2020) / --- VESPA SPRINT 50 4T 3V AC IGET E5 (2021 - 2023) Para 5214738/ --- VESPA SPRINT 50 4T 3V 25KM/H AC IGET E5 (2021 - 2023) Para 5214738/ --- WT MOTORS BILBAO 50 (2011 - 2019) /

Documentos:

• Tabla completa de aplicaciones Malossi

Disponible en 48 a 72 horas
